Hoshizaki

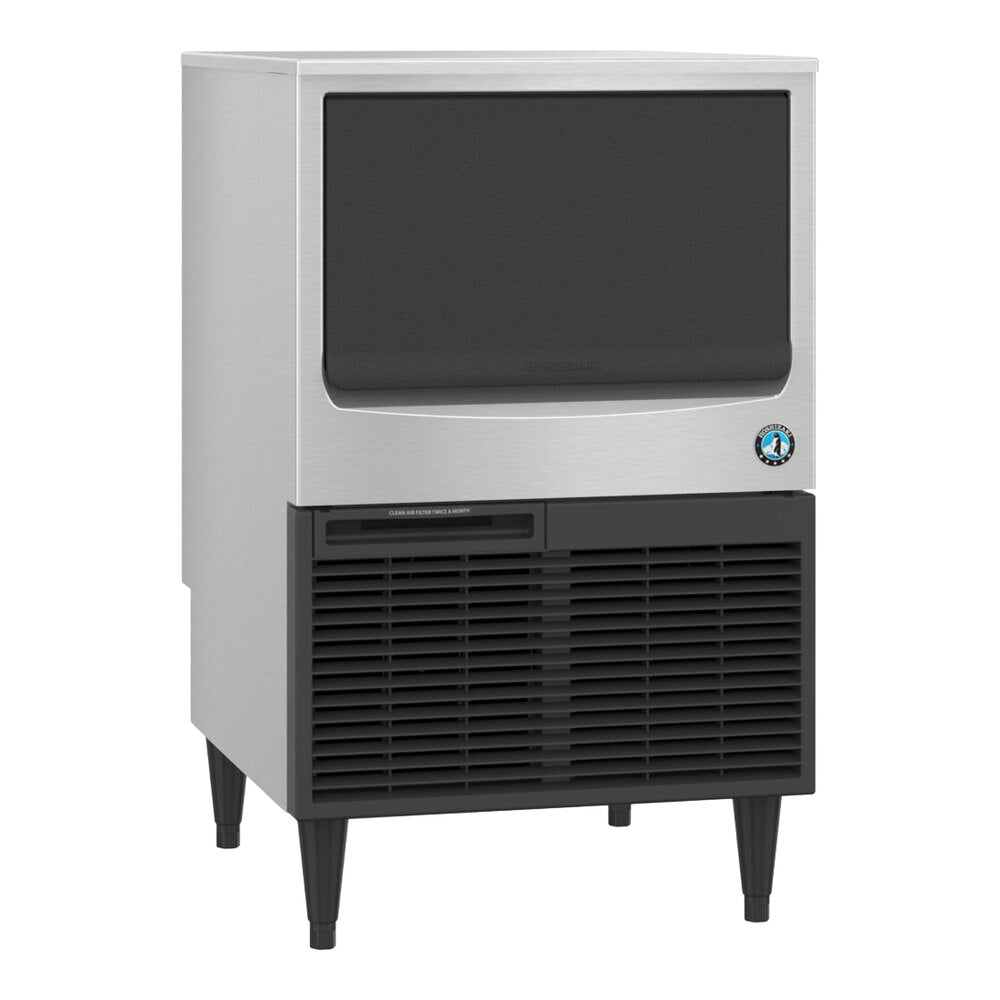

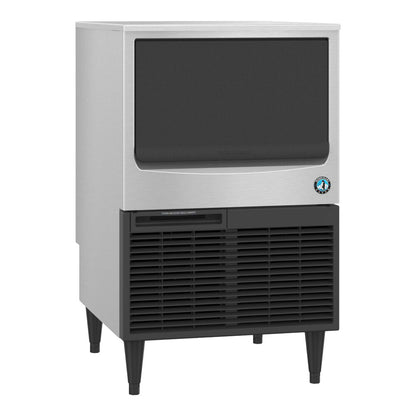

Hoshizaki KM-161BAK 23 3/4" ADA-Compliant Air-Cooled Undercounter Crescent Cube Ice Machine with 78 lb. Storage - 156 lb./Day
Hoshizaki KM-161BAK 23 3/4" ADA-Compliant Air-Cooled Undercounter Crescent Cube Ice Machine with 78 lb. Storage - 156 lb./Day
Couldn't load pickup availability
Freight & delivery
These preferences are saved with your order so our team can price freight delivery to your door.
The Hoshizaki KM-161BAK is a 23 3/4" air-cooled crescent cube ice machine that produces up to 156 lb. of ice per 24 hours and includes 78 lb. of built-in ice storage. Its compact undercounter footprint slides beneath standard counters, making it a natural fit for bars, cafés, juice shops, and restaurants that need dependable ice production close to the point of service. The EverCheck alert system, and Hoshizaki’s energy-saving CycleSaver design add sanitation, easier maintenance, and lower operating costs. Runs on 115V power using R-290 refrigerant.
Key Features
- Produces up to 156 lb. of crescent-shaped ice cubes per day and stores up to 78 lb.
- Durable stainless steel KMEdge evaporator
- EverCheck alert system and CycleSaver design
- Self-contained and ADA-compliant construction
- R-290 refrigerant, 115V, 1 phase
- Certifications: ADA Compliant, ARI / AHRI, ENERGY STAR, ETL Listed, NSF Certified, UL Certified
Specifications
| Model | KM-161BAK |
|---|---|
| Shipping Weight | 161 lb. |
| Width | 23 3/4 Inches |
| Depth | 28 Inches |
| Height | 39 Inches |
| Power Cord Length | 6 1/2 Feet |
| Amps | 3.5 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| 24 Hour Ice Yield | 156 Pounds |
| Ambient Temperature Range | 45 - 100 Degrees F |
| Bin Storage Capacity | 78 lb. |
| Condenser Type | Air-Cooled |
| Ice Type | Crescent Cubes |
| Installation Type | Undercounter |
| Material | Stainless Steel |
| Plug Type | NEMA 5-15P |
| Refrigerant Type | R-290 |
| Water Inlet Size | 1/4 Inches |
| Water Pressure Range | 10 - 113 PSI |
| Water Temperature Range | 45 - 90 Degrees F |
Documents
Warranty
Backed by Hoshizaki America’s factory warranty. Coverage varies by series — see the warranty document above for full details, or contact us for warranty support and registration assistance.
