Hoshizaki KM-322MAK Slim-Line Series 22" Air-Cooled Modular Crescent Ice Machine with Stainless Steel Finish and 300 lb. Storage - 489 lb., 115V, 1 Phase
Hoshizaki KM-322MAK Slim-Line Series 22" Air-Cooled Modular Crescent Ice Machine with Stainless Steel Finish and 300 lb. Storage - 489 lb., 115V, 1 Phase
Couldn't load pickup availability
Freight & delivery
These preferences are saved with your order so our team can price freight delivery to your door.

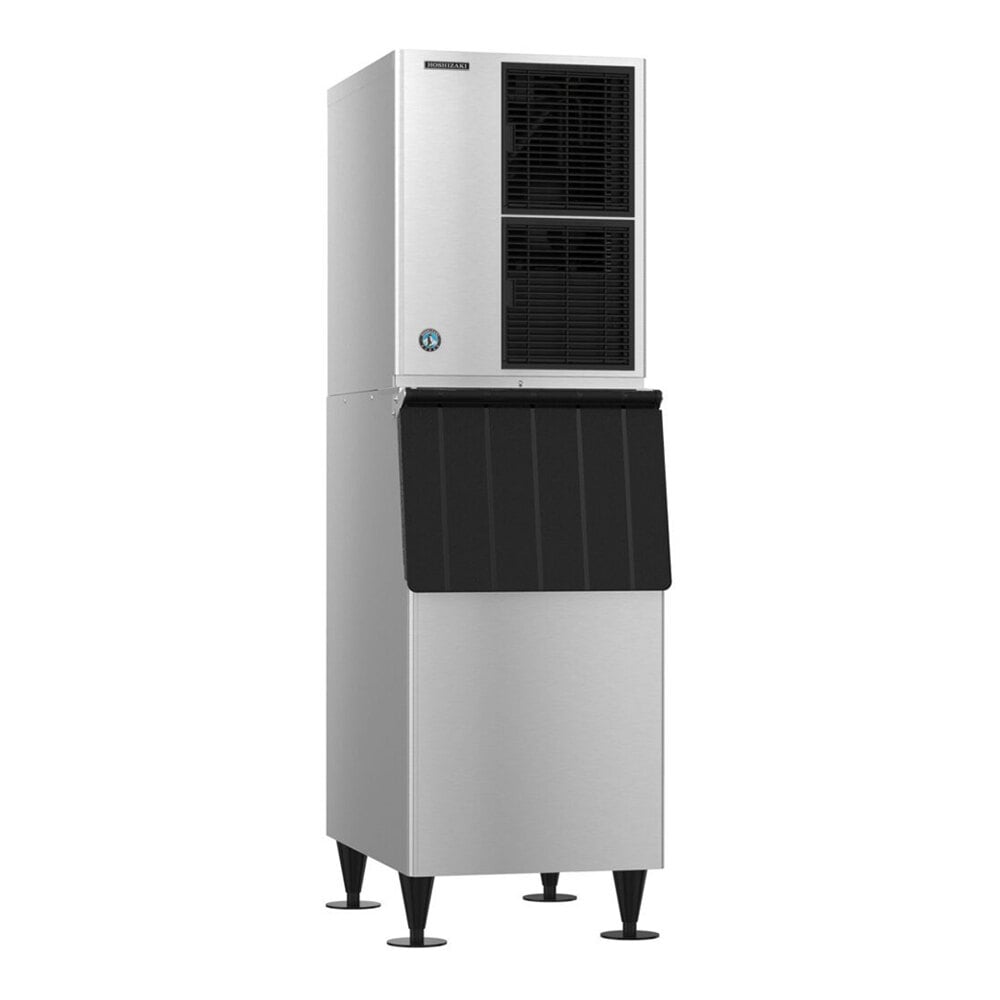

The Hoshizaki KM-322MAK is a 22" air-cooled crescent cube ice machine that produces up to 489 lb. of ice per 24 hours and includes 300 lb. of built-in ice storage. Built for high-volume foodservice operations, it delivers consistent, restaurant-quality ice through demanding daily service. The EverCheck alert system, and Hoshizaki’s energy-saving CycleSaver design add sanitation, easier maintenance, and lower operating costs. Runs on 115V power using R-290 refrigerant.
Key Features
- Produces up to 489 lb. of crescent-shaped ice cubes per day and stores up to 300 lb.
- Durable stainless steel dual-sided KMEdge evaporator
- EverCheck alert system and CycleSaver design
- Slim design allows for mounting of two units side by side in a tight space
- R-290 refrigerant, 115V, 1 phase
- Certifications: ARI / AHRI, ENERGY STAR, Made in America, NSF Certified, UL Certified
Specifications
| Model | KM-322MAK |
|---|---|
| Shipping Weight | 260 lb. |
| Width | 22 Inches |
| Depth | 32 5/16 Inches |
| Height | 74 Inches |
| Bin Width | 22 Inches |
| Bin Depth | 32 5/16 Inches |
| Bin Height | 46 Inches |
| Amps | 9.7 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| 24 Hour Ice Yield | 489 Pounds |
| Ambient Temperature Range | 45 - 100 Degrees F |
| Bin Storage Capacity | 300 lb. |
| Condenser Type | Air-Cooled |
| Ice Type | Crescent Cubes |
| Installation Type | Freestanding |
| Material | Stainless Steel |
| Plug Type | Hardwire |
| Product Line | Hoshizaki Slim-Line Series |
| Refrigerant Type | R-290 |
| Water Inlet Size | 1/4 Inches |
| Water Pressure Range | 10 - 113 PSI |
| Water Temperature Range | 45 - 90 Degrees F |
Documents
Warranty
Backed by Hoshizaki America’s factory warranty. Coverage varies by series — see the warranty document above for full details, or contact us for warranty support and registration assistance.
