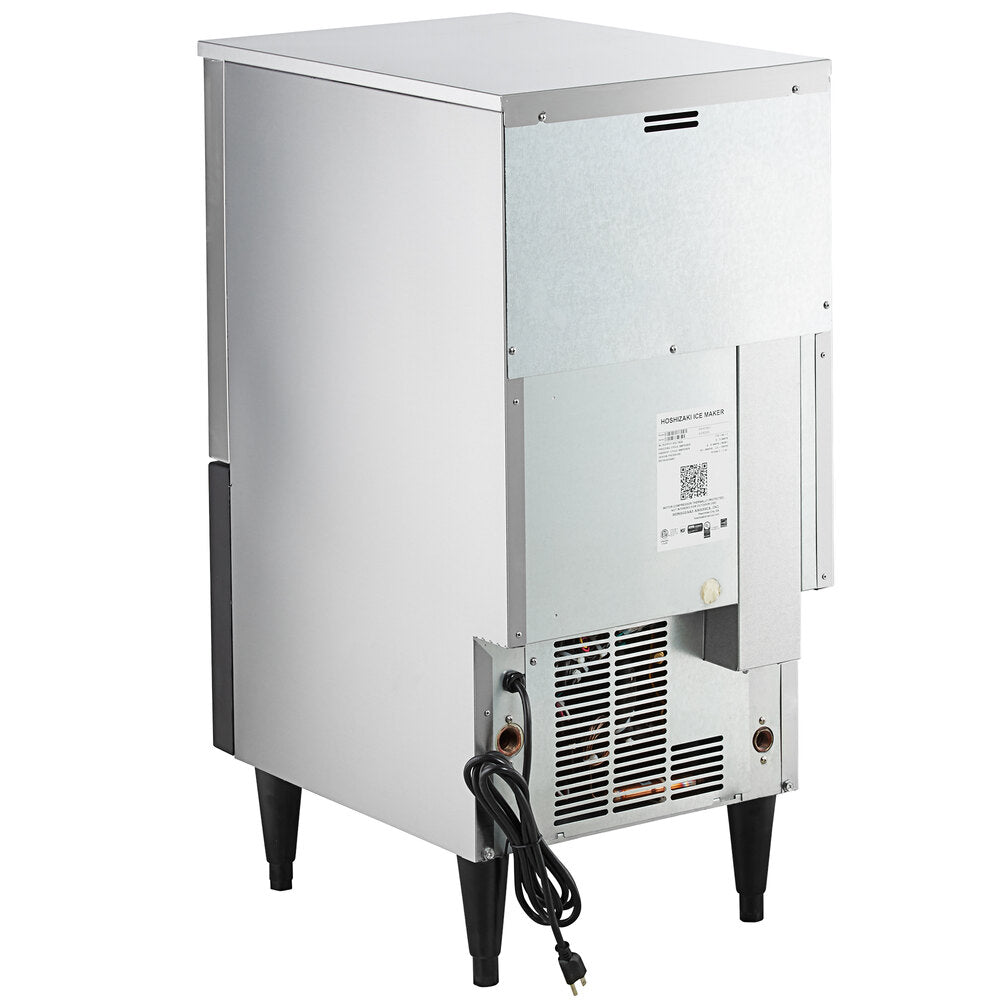

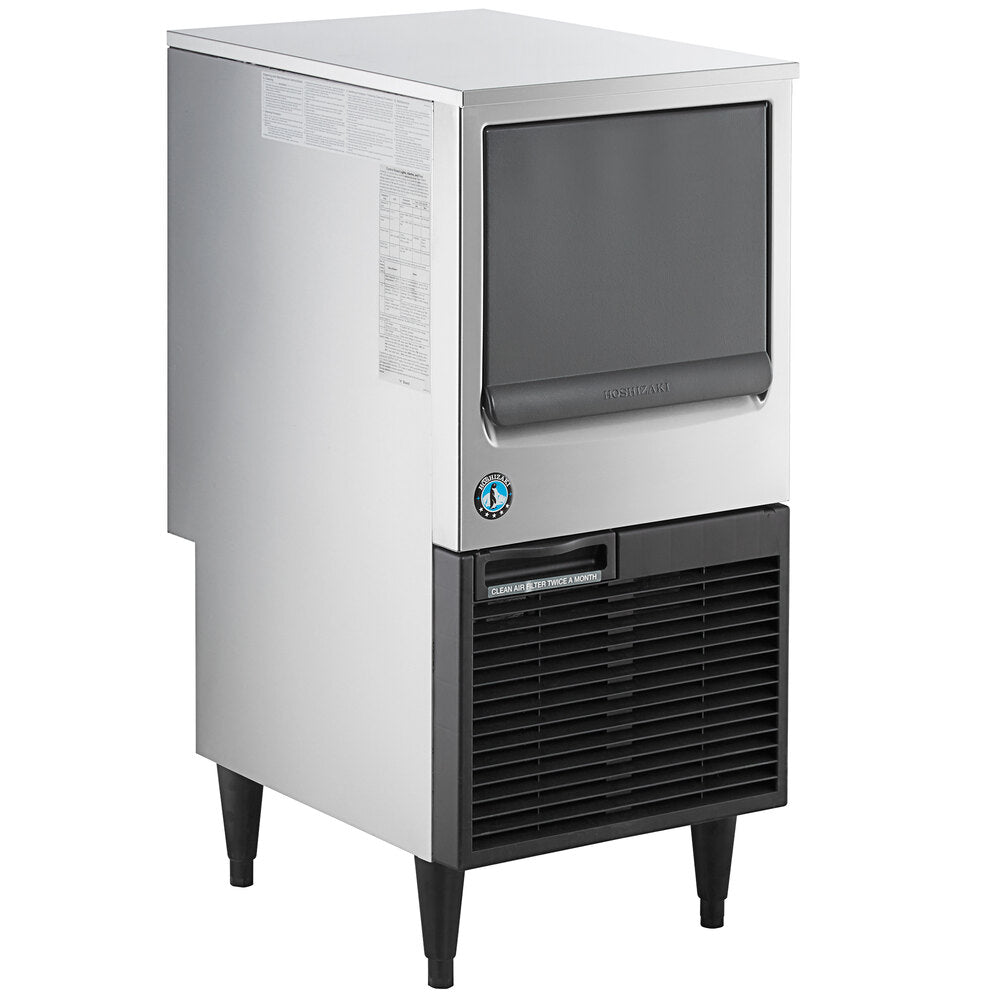

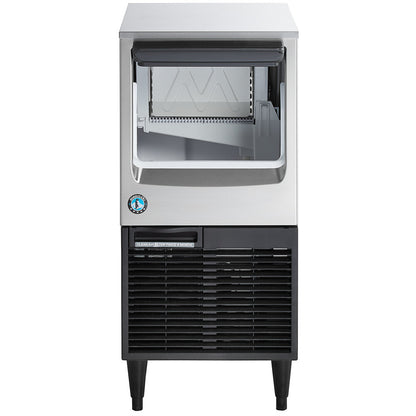

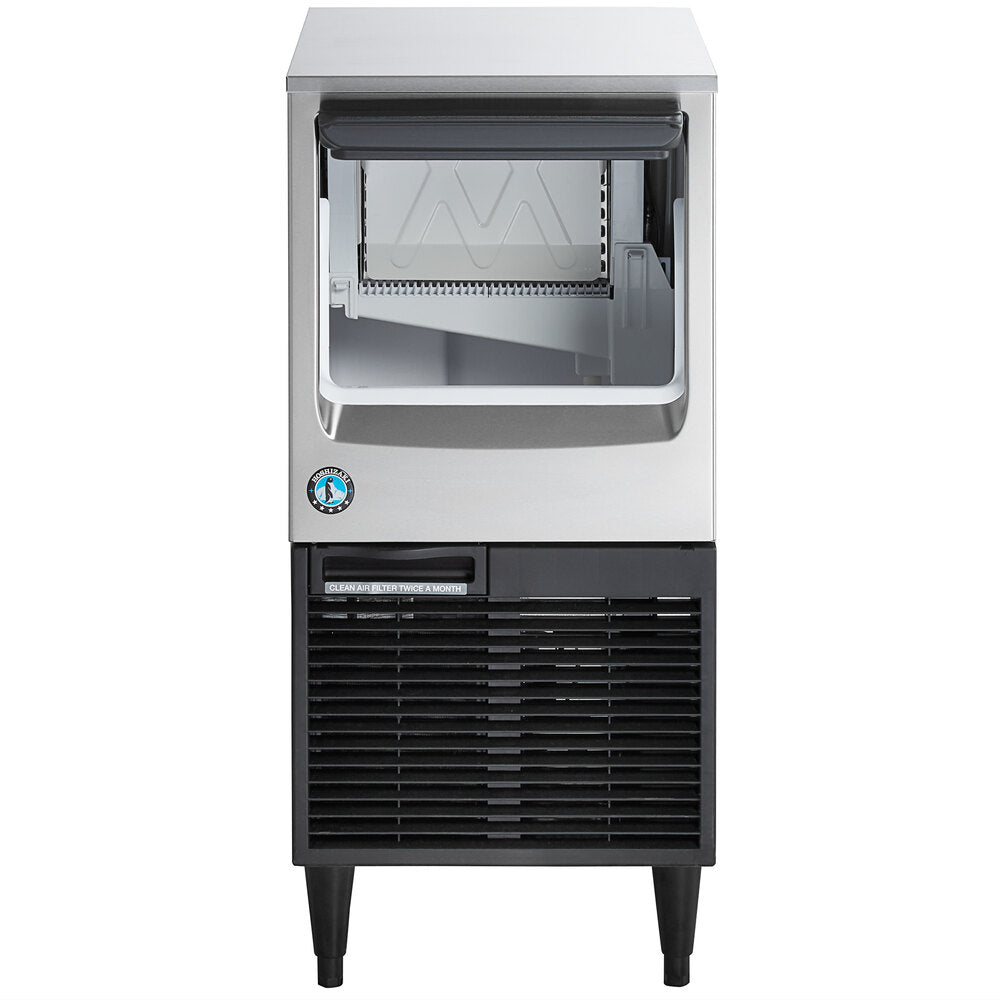

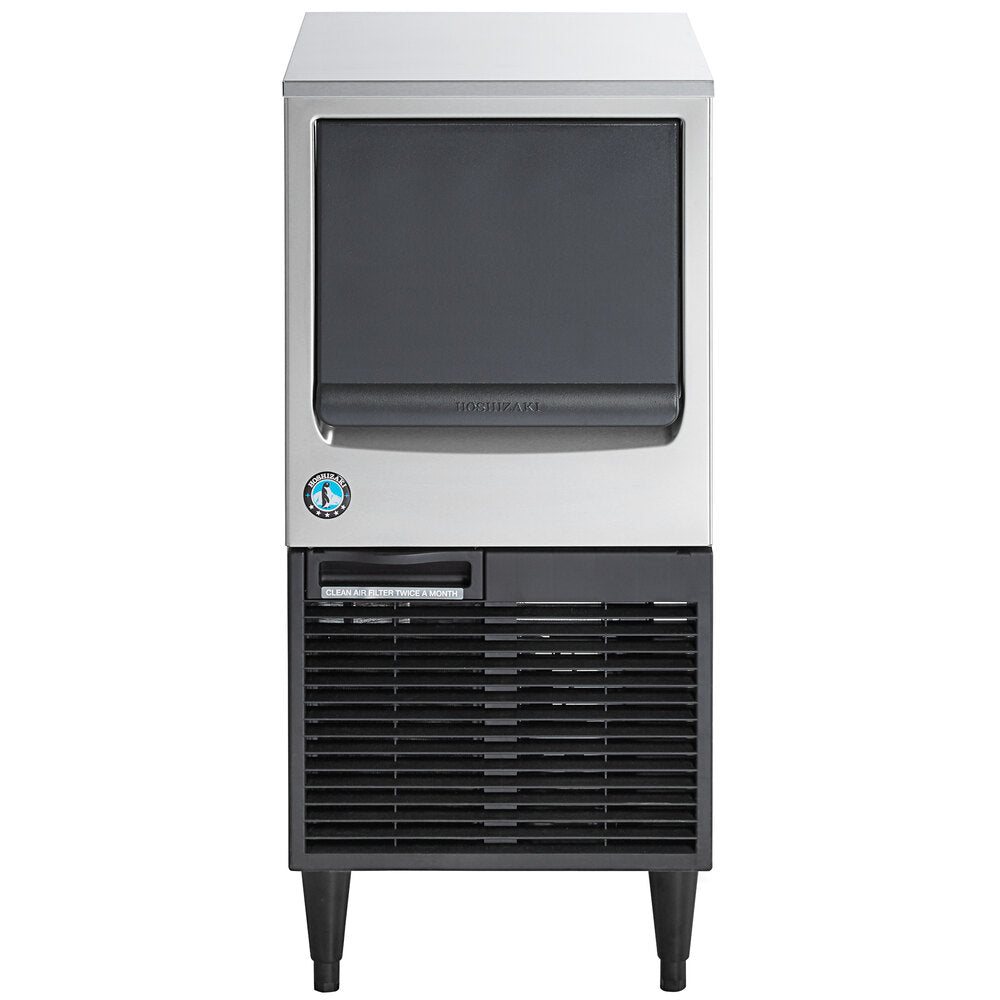

Hoshizaki KM-81BAJ 17 3/4" Air-Cooled Undercounter Crescent Cube Ice Machine with 38 lb. Storage - 86 lb./Day
Hoshizaki KM-81BAJ 17 3/4" Air-Cooled Undercounter Crescent Cube Ice Machine with 38 lb. Storage - 86 lb./Day

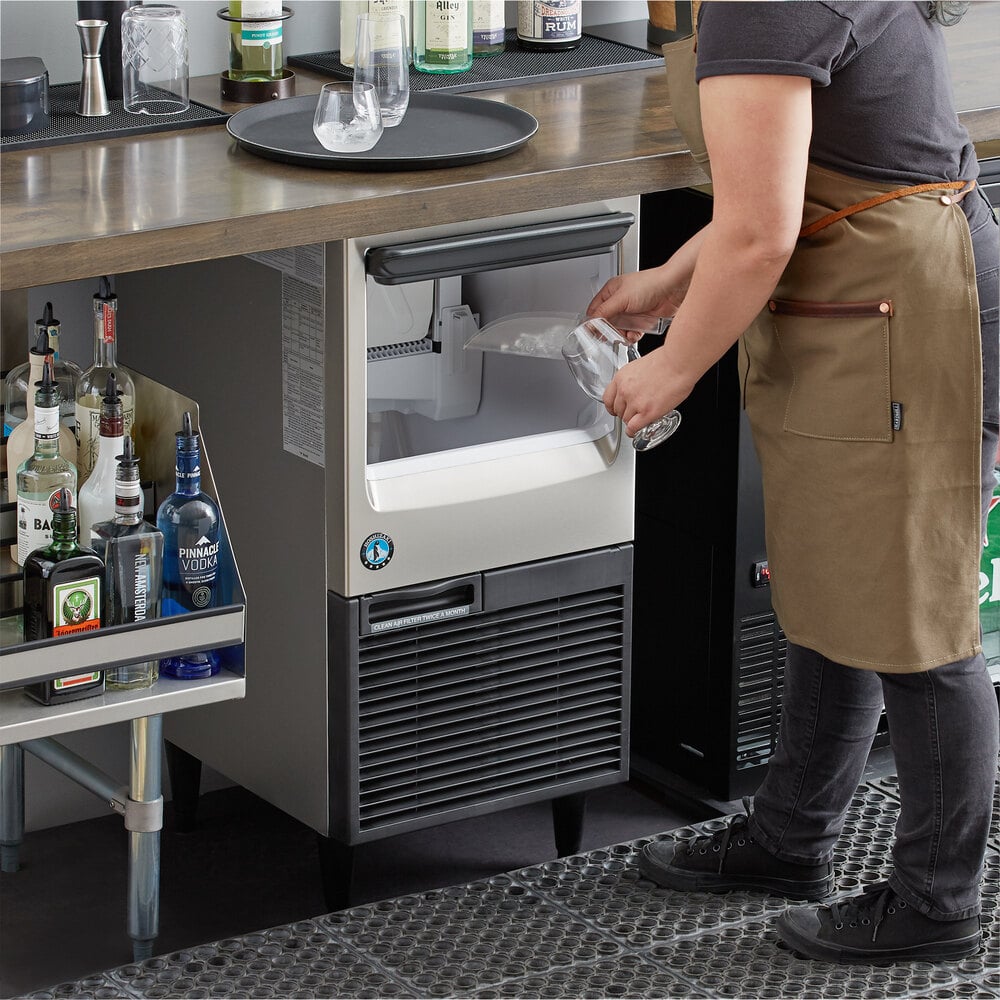

The Hoshizaki KM-81BAJ is a 17 3/4" air-cooled crescent cube ice machine that produces up to 86 lb. of ice per 24 hours and includes 38 lb. of built-in ice storage. Its compact undercounter footprint slides beneath standard counters, making it a natural fit for bars, cafés, juice shops, and restaurants that need dependable ice production close to the point of service. H-GUARD Plus antimicrobial protection, the EverCheck alert system, and Hoshizaki’s energy-saving CycleSaver design add sanitation, easier maintenance, and lower operating costs. Runs on 115V power using R-134A refrigerant.
Key Features
- Produces up to 86 lb. of crescent-shaped ice cubes per day and stores up to 38 lb.
- Protected by H-GUARD Plus antimicrobial agent for safety and sanitation
- EverCheck alert system and CycleSaver design for energy efficiency
- Front-in, front out airflow with removable air filter
- Certifications: ADA Compliant, ARI / AHRI, ENERGY STAR, ETL Listed, Made in America, NSF Certified, UL Certified
Specifications
| Model | KM-81BAJ |
|---|---|
| Shipping Weight | 127 lb. |
| Width | 17 3/4 Inches |
| Depth | 24 Inches |
| Height | 39 Inches |
| Amps | 3.5 Amps |
| Hertz | 60 Hz |
| Phase | 1 Phase |
| Voltage | 115 Volts |
| 24 Hour Ice Yield | 86 Pounds |
| Bin Storage Capacity | 38 lb. |
| Condenser Type | Air-Cooled |
| Ice Type | Crescent Cubes |
| Installation Type | Undercounter |
| Plug Type | NEMA 5-15P |
| Refrigerant Type | R-134A |
| Water Inlet Size | 1/4 Inches |
Documents
Warranty
Backed by Hoshizaki America’s factory warranty. Coverage varies by series — see the warranty document above for full details, or contact us for warranty support and registration assistance.
